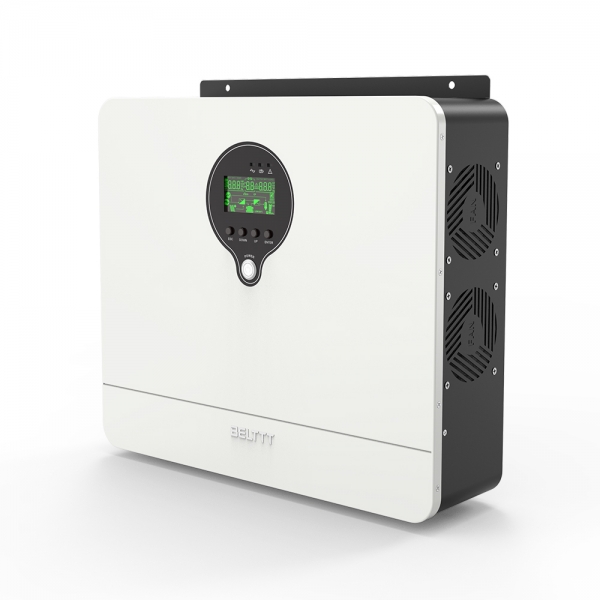

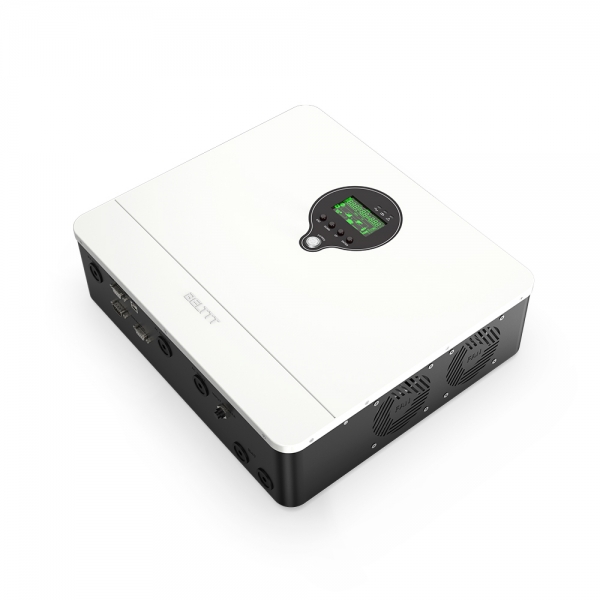

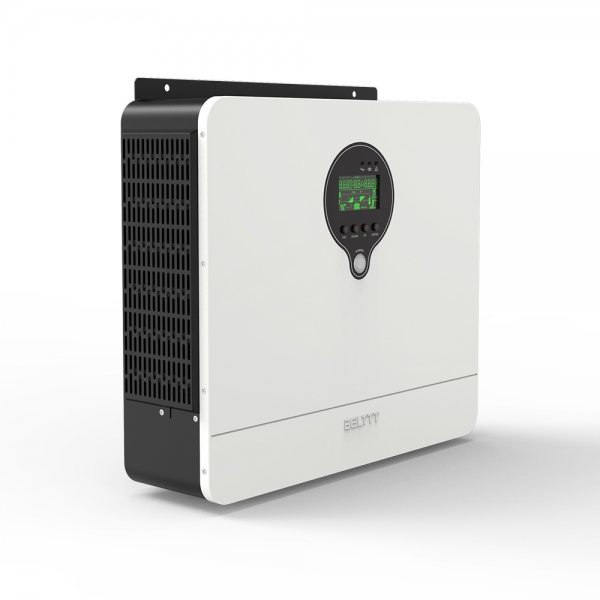

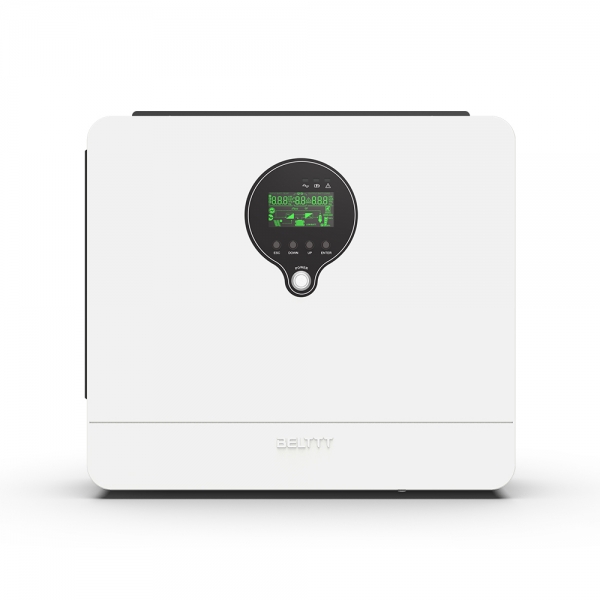

BDH5500D Hybrid Solar Inverter

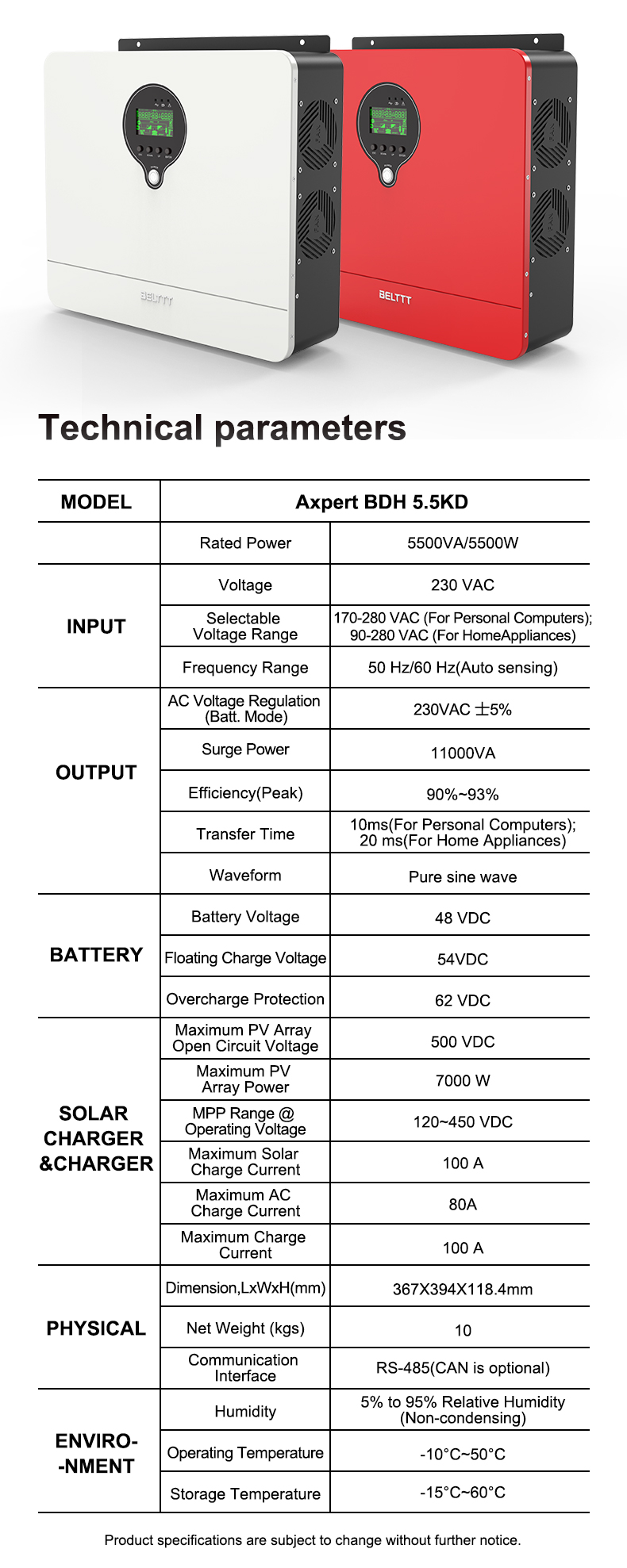

Model：BDH5500D
Solar Charger Mode
Max.pv Input Voltage：500Vdc
MPPT Voltage Range:100-450Vdc
Max. Charge Current:100A
AC Charger Mode
AC input： 230VAC,50Hz/60Hz,40A
Max.AC charge current: 80A
Battery Mode
Battery Input： 48VDC,127A
Type of battery： AGM、Flooded
 Lithium、User-defined battery
Pated power： 5500VA/5500W
AC output： 230VAC,50Hz/60Hz,25A

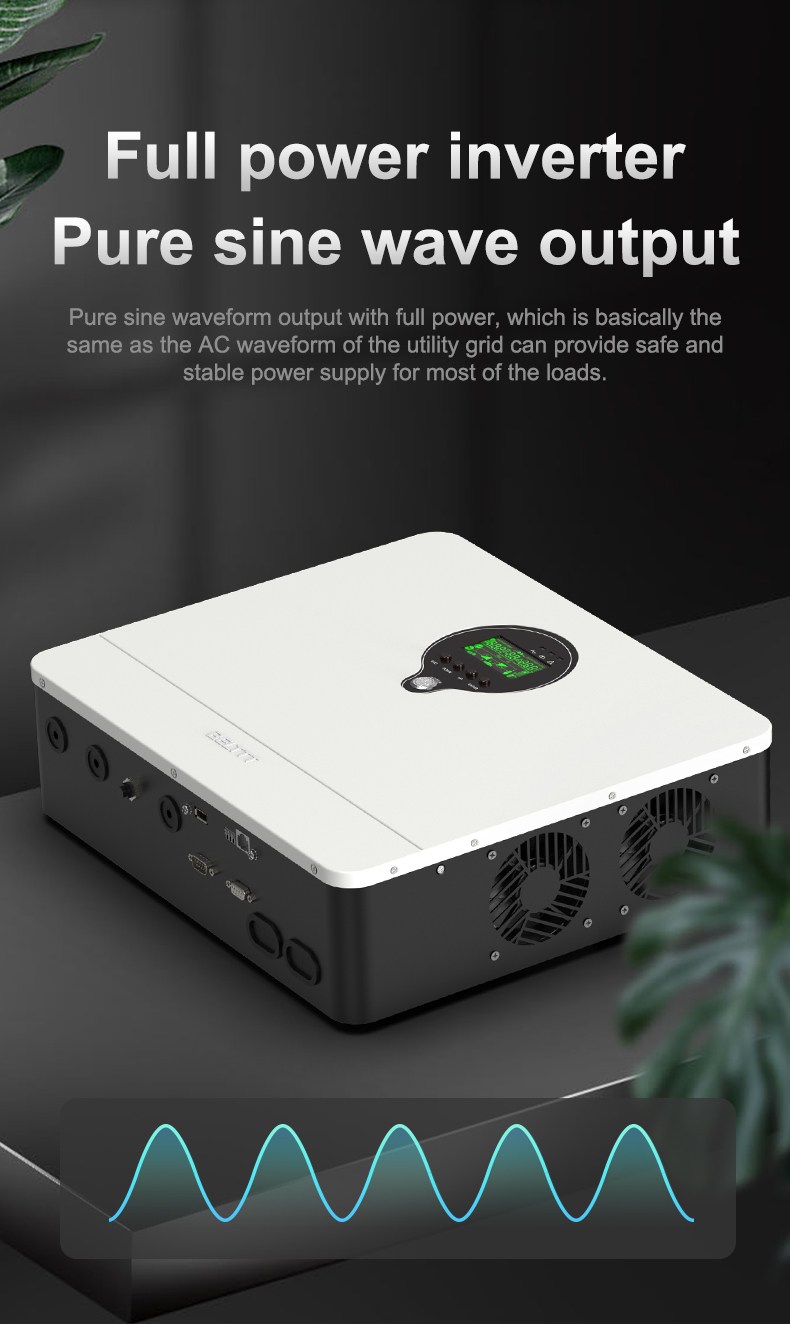

Pure sine wave output
Wide PV input voltage range, high conversion efficiency

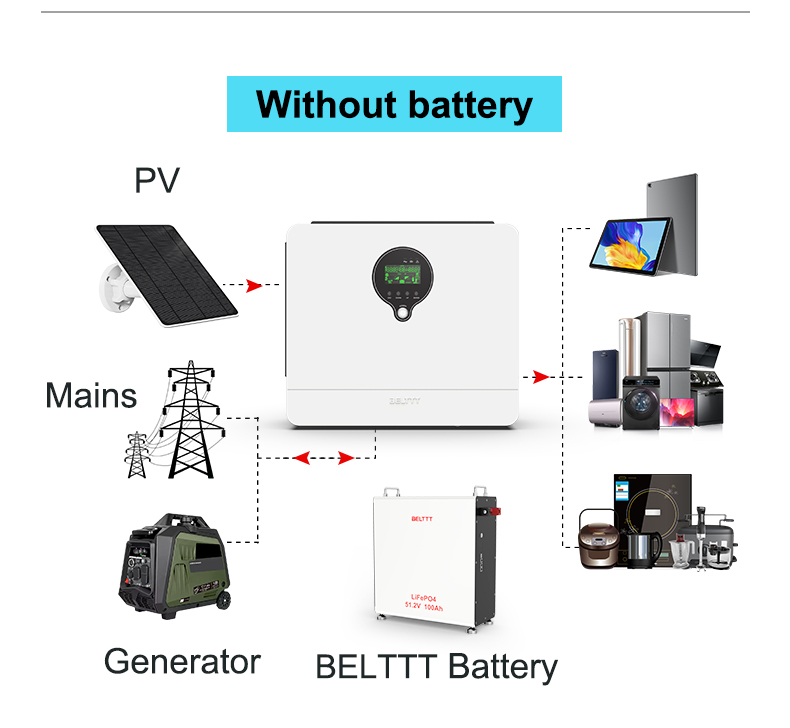

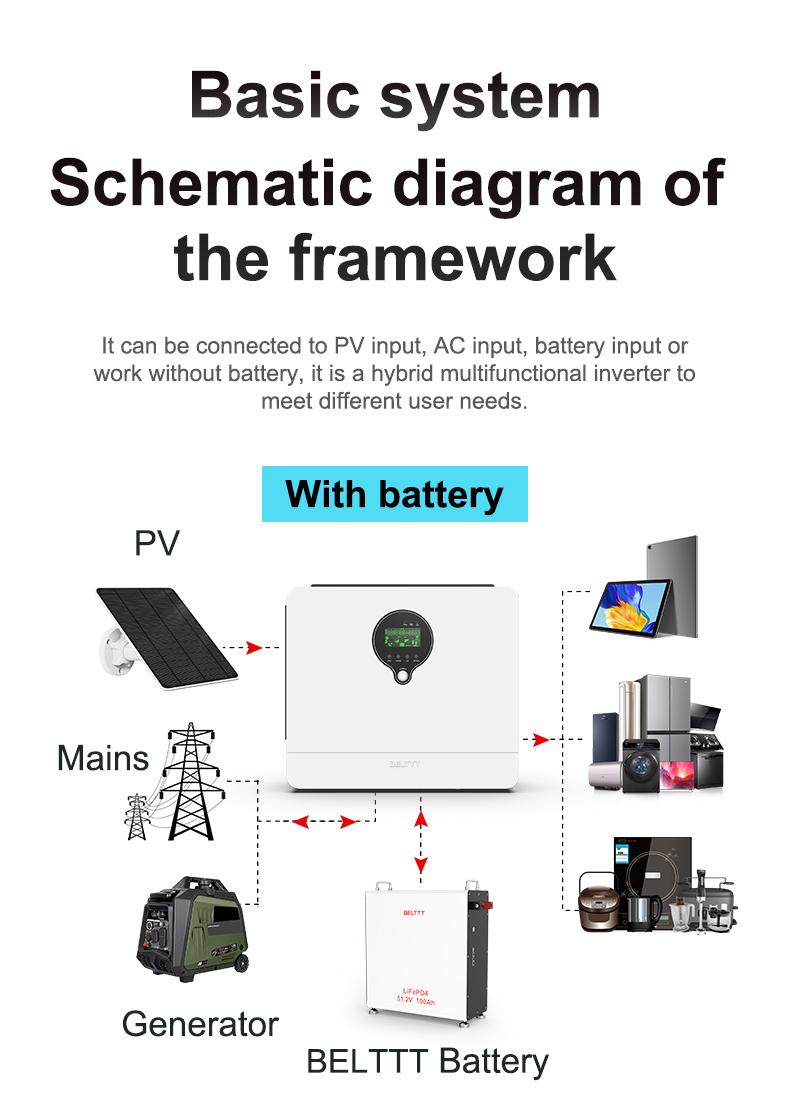

Battery-free operation design
100A MPPT charging, can connect up to 7200W
solar modules
Battery equalization function to optimize battery

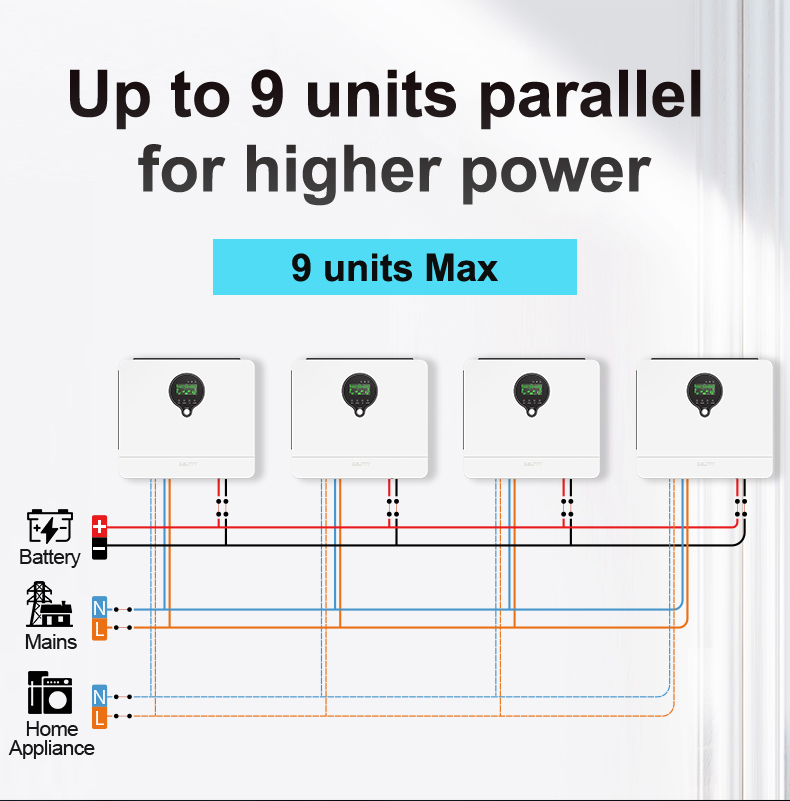

Up to 9 units in parallel
Micro grid tie operation
Proprietary CC-BOOST function
WIFI/Bluetooth optional
